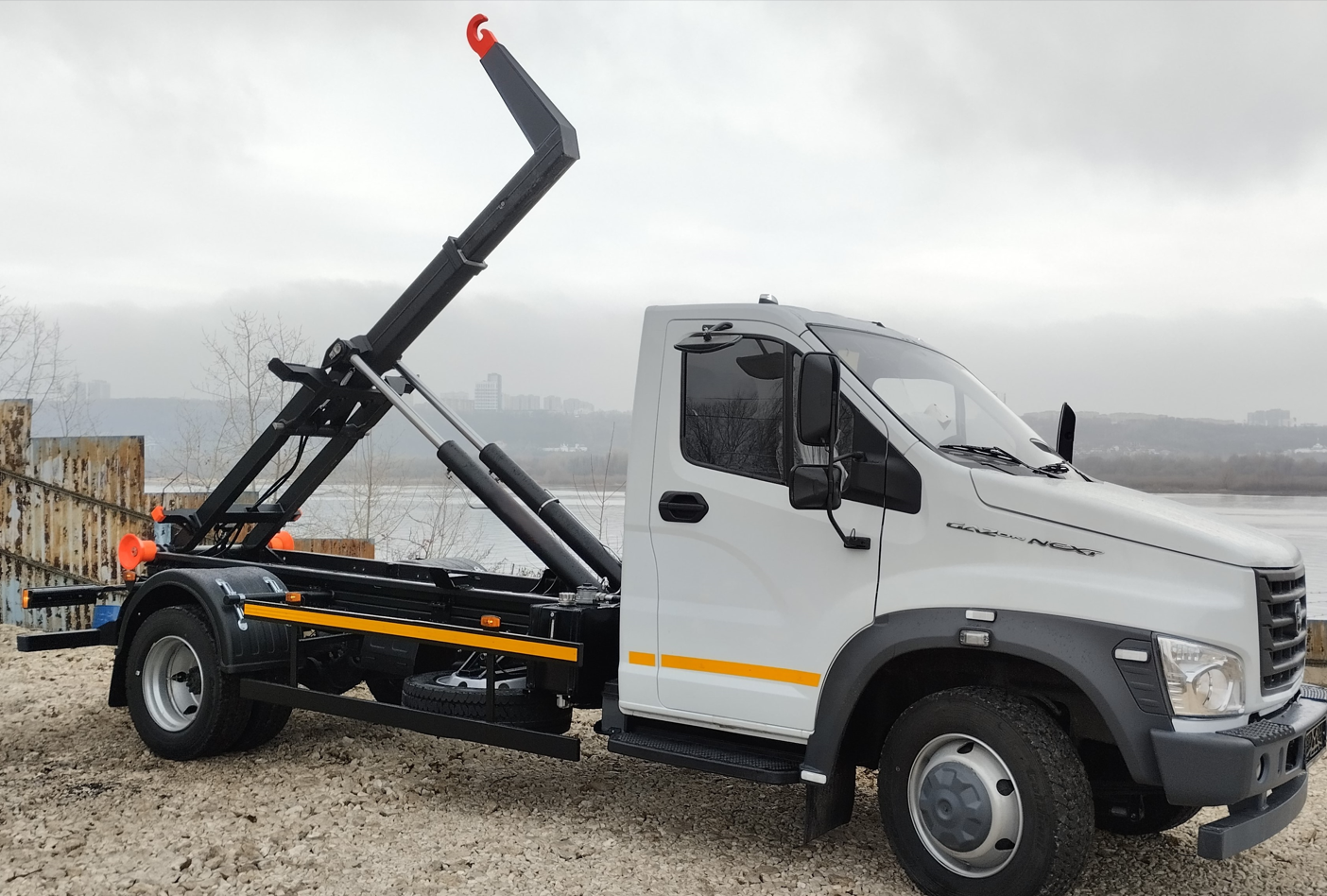

Light-duty sliding-arm hooklift system, featuring lightweight design, high-strength structure and excellent performance. It complies with DIN 30722 standard or can be customized accordingly.

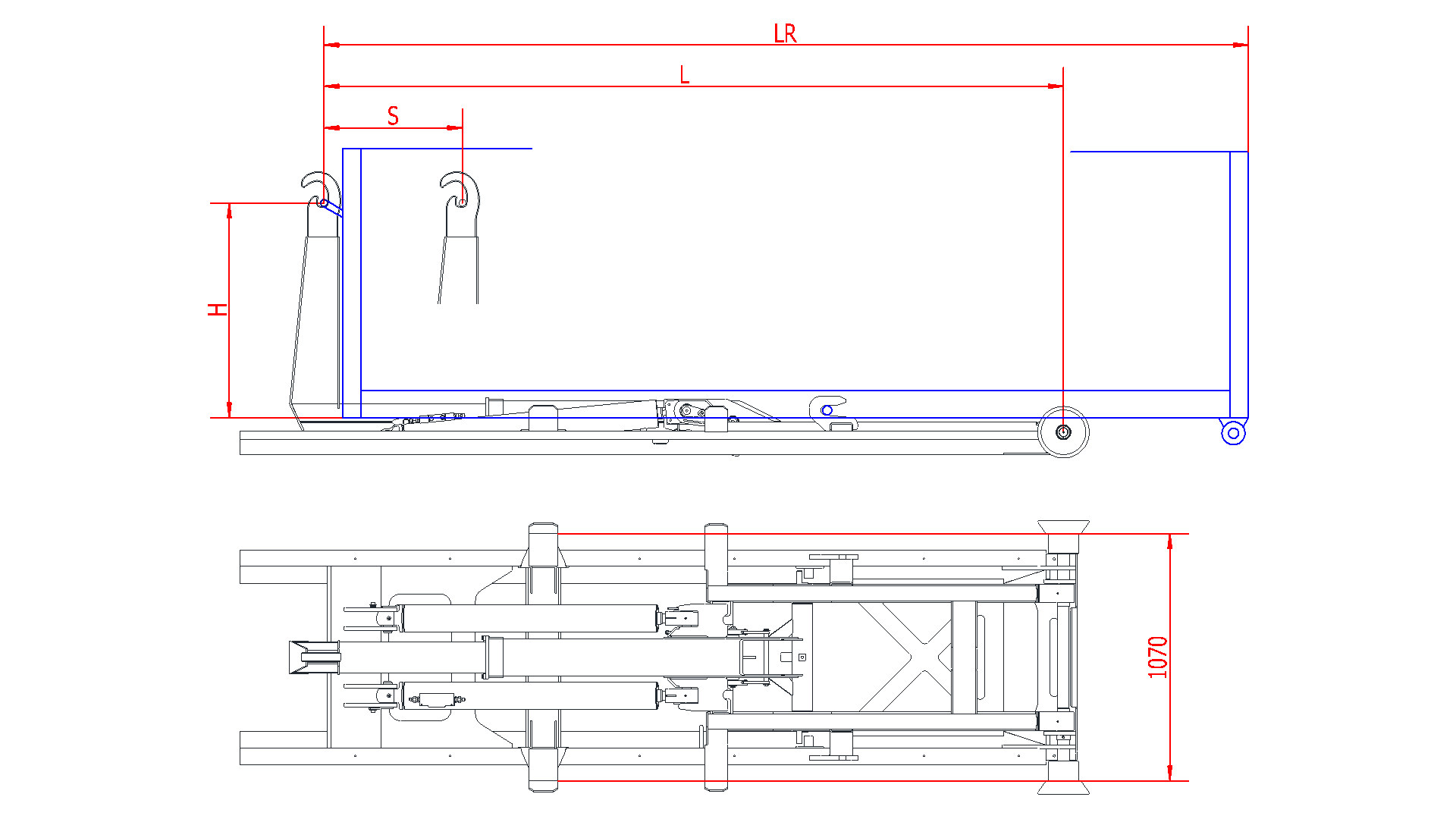

| Model | Rated Loading Capacity(Ton) | Weight(Kg) | H-Hook Height(mm) | L(mm) | LR(m) | Container Lock Type |
|---|---|---|---|---|---|---|
| LBH628 | 6 | 690 | 930 | 2755 | 3.0-3.5 | Mechanical type or hydraulic type |
| LBH632 | 6 | 710 | 930 | 3250 | 3.5-4.0 | Mechanical type or hydraulic type |
| LBH636 | 6 | 730 | 930 | 3650 | 4.0-4.5 | Mechanical type or hydraulic type |
💡 If you are interested in this series of products or have special dimension requirements, please contact our professional team or use the download button at the top of the page to receive more detailed data.
