Heavy-duty sliding-arm hooklift system is our best-selling model, featuring lightweight design, high structural strength and excellent performance. It complies with DIN 30722 standard or can be customized according to this standard.

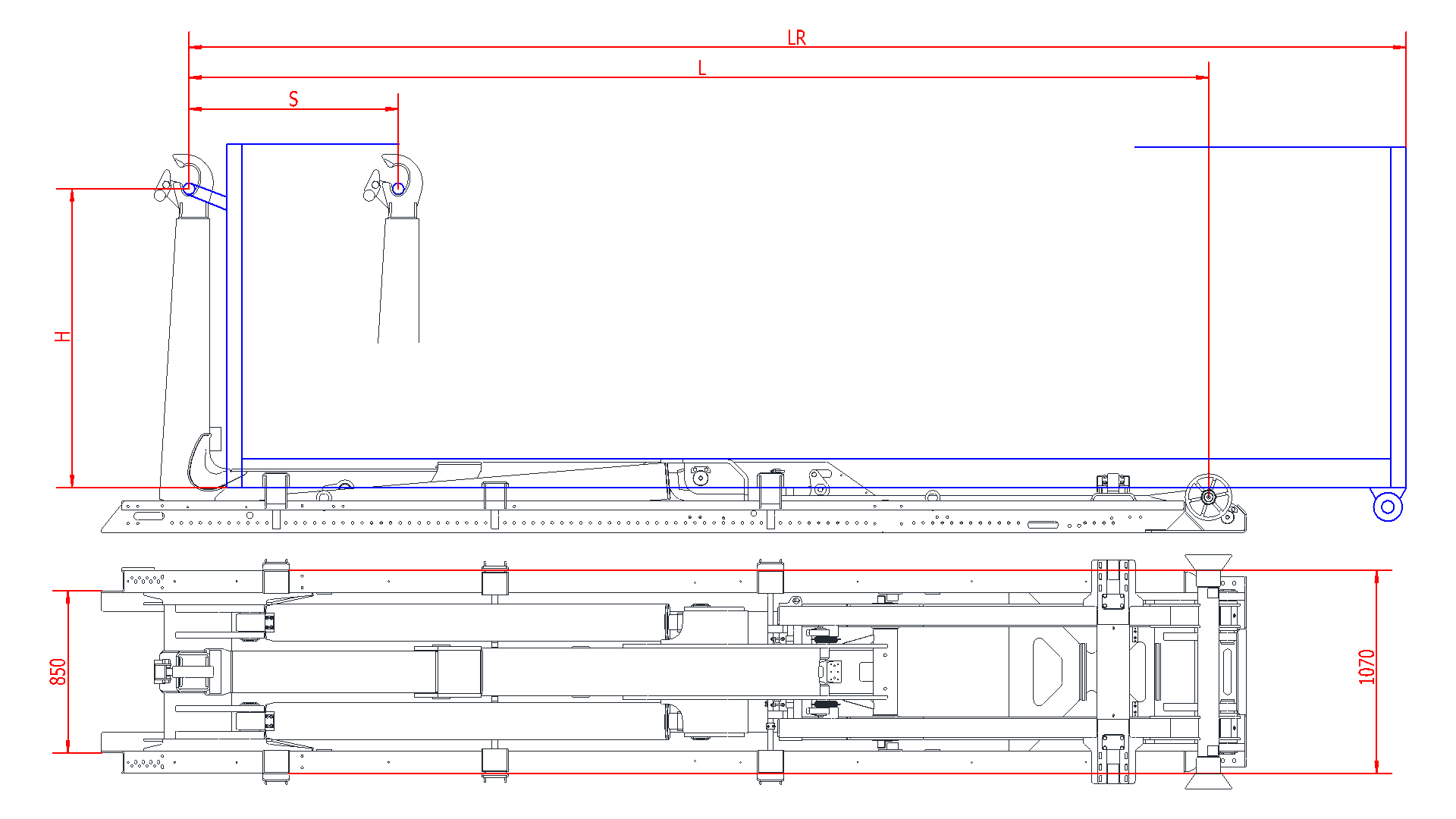

| Model | Rated Loading Capacity(Ton) | Weight(Kg) | H-Hook Height(mm) | L(mm) | LR(m) |
|---|---|---|---|---|---|
| LBH2255 | 22 | 2550 | 1570 | 5360 | 4.7-6.4 |
| LBH2257 | 22 | 2600 | 1570 | 5560 | 4.7-6.6 |
| LBH2260 | 22 | 2650 | 1570 | 5860 | 4.9-6.9 |
| LBH2262 | 22 | 2650 | 1570 | 6100 | 5.1-7.1 |
| LBH2264 | 22 | 2700 | 1570 | 6310 | 5.3-7.3 |
💡 If you are interested in this series of products or have special dimension requirements, please contact our professional team or use the download button at the top of the page to receive more detailed data.
