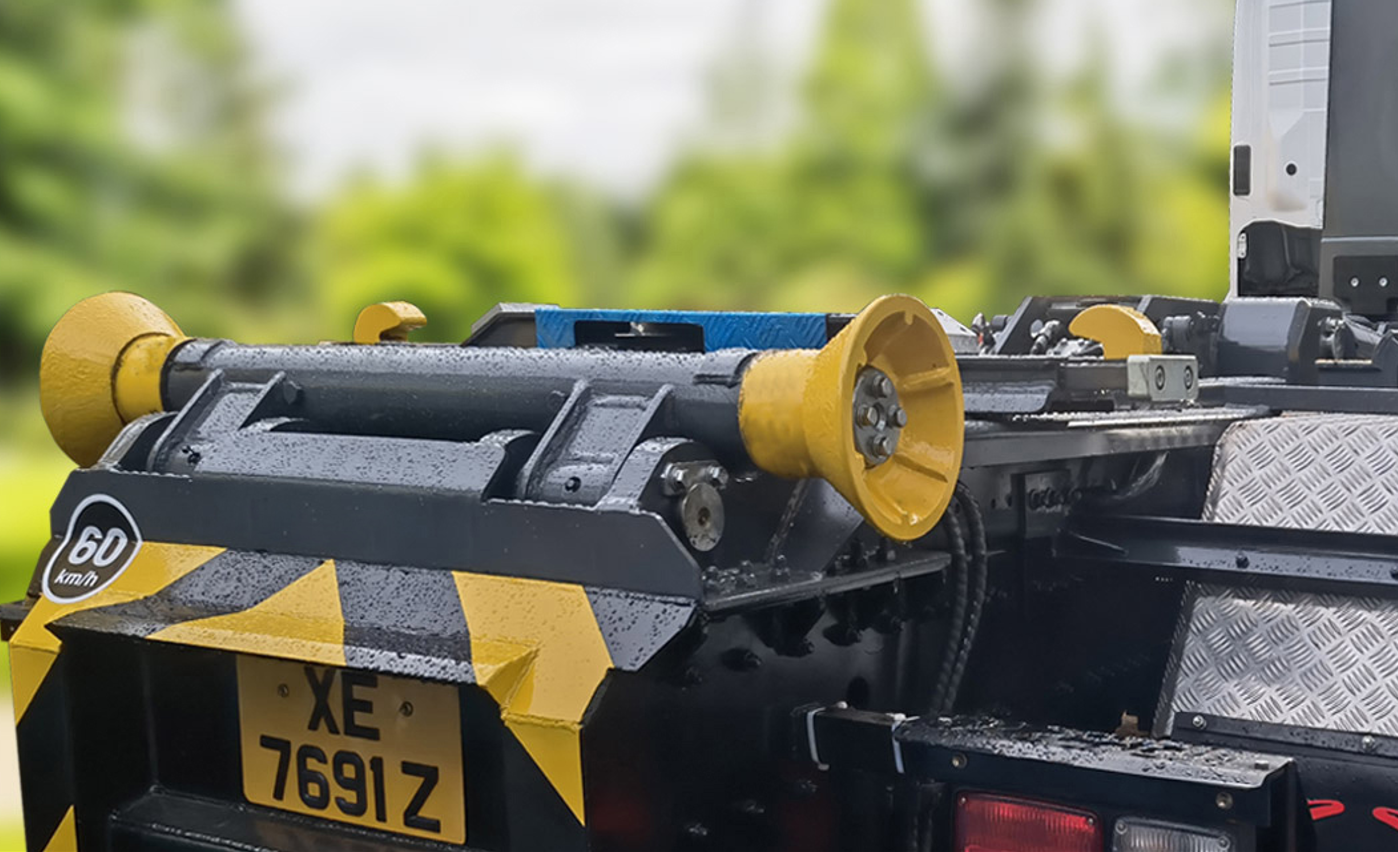

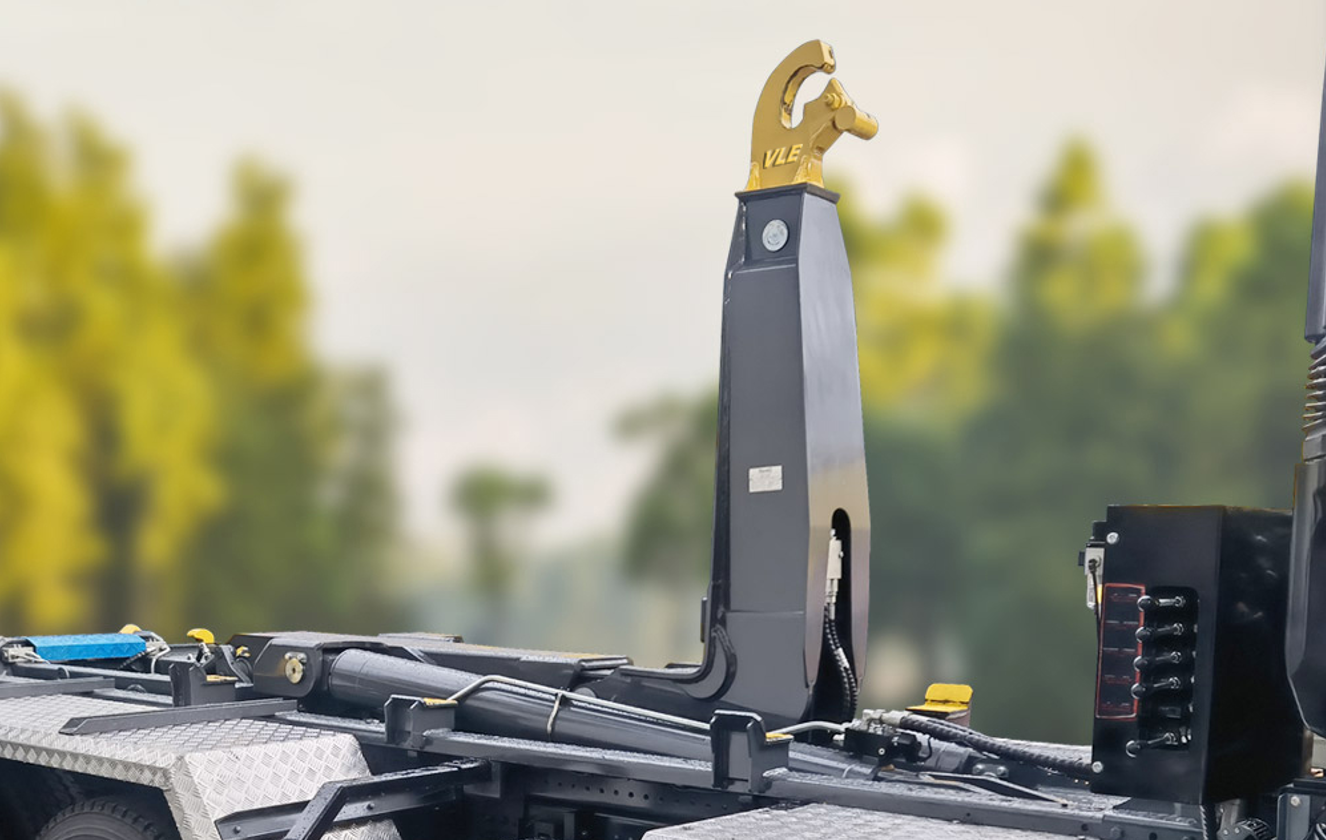

Heavy-duty composite hooklift system (sliding and swinging), featuring lightweight design, high structural strength and excellent performance. Specially designed for low operating spaces, it complies with DIN 30722 standard or can be customized accordingly.

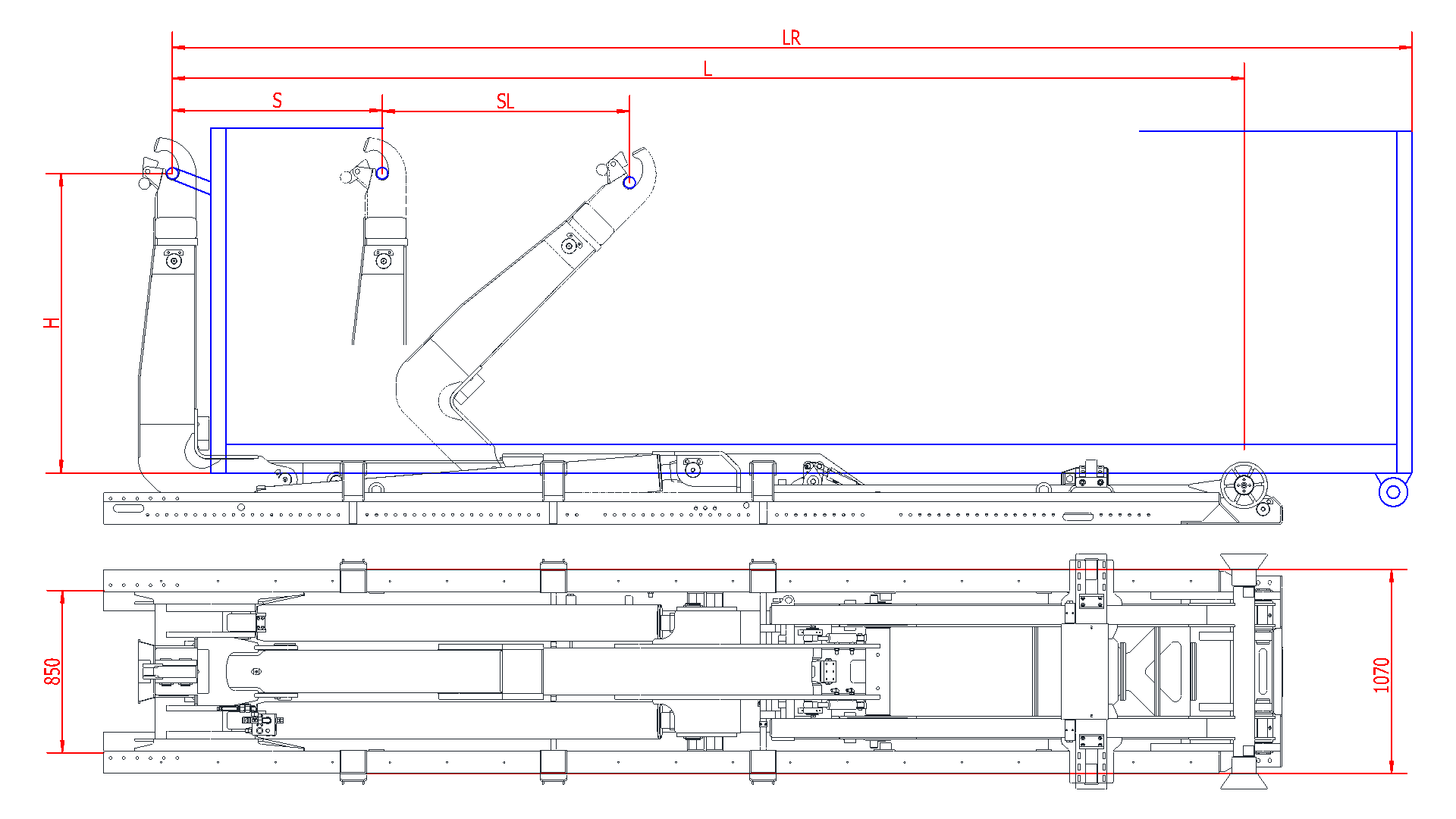

| Model | Rated Loading Capacity(Ton) | Weight(Kg) | H-Hook Height(mm) | L(mm) | LR(m) |
|---|---|---|---|---|---|
| LBF1847 | 18 | 2480 | 1570 | 4600 | 3.4-5.6 |
| LBF1852 | 18 | 2560 | 1570 | 5080 | 3.6-6.1 |
| LBF1854 | 18 | 2610 | 1570 | 5310 | 3.9-6.3 |
| LBF1857 | 18 | 2660 | 1570 | 5610 | 4.2-6.6 |
| LBF1860 | 18 | 2720 | 1570 | 5880 | 4.4-6.9 |
| LBF1862 | 18 | 2800 | 1570 | 6110 | 4.7-7.1 |
💡 If you are interested in this series of products or have special dimension requirements, please contact our professional team or use the download button at the top of the page to receive more detailed data.
